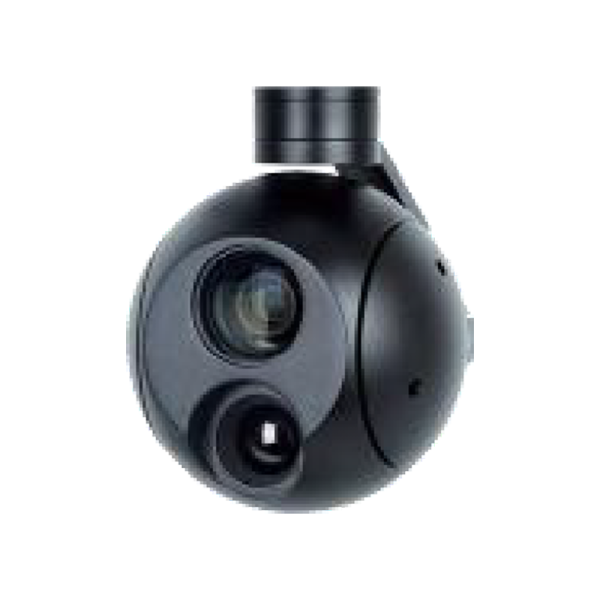

Dragon VT30

Overview	Imaging	Stabilization	Application
A dual-variant aerial imaging payload system designed for stable, accurate, and multi-scenario monitoring operations.	VT30 features visible zoom imaging, while VT30S adds advanced thermal imaging capability.	3-axis stabilized gimbal with 360° continuous pan for smooth and precise coverage.	Ideal for surveillance, inspection, security, search missions, and thermal observation.

Overview

Imaging

Stabilization

Application

A dual-variant aerial imaging payload system designed for stable, accurate, and multi-scenario monitoring operations.

VT30 features visible zoom imaging, while VT30S adds advanced thermal imaging capability.

3-axis stabilized gimbal with 360° continuous pan for smooth and precise coverage.

Ideal for surveillance, inspection, security, search missions, and thermal observation.

Description

Parameters

Category	Dragon VT30	Dragon VT30S
Features	Photo and video recording features. Target GPS information logging capability. Automatic capture functionality. 10x visible light.	Photo and video recording features. Target GPS information logging capability. Automatic capture functionality. Lightweight. 50mm thermal imaging.
Gimbal	Stabilized System: 3-axis Mechanical Range: 360° continuous Pan; Pitch: -110° ~ +10°	Stabilized System: 3-axis Mechanical Range: 360° continuous Pan; Pitch: -110° ~ +10°
Zoom Camera	Sensor: 1/3″ CMOS Effective Pixels: 2.13 MP Resolution: 1920×1080 Focal length: 3.3–33 mm Optical Zoom: 10x Digital Zoom: 3x Max. Zoom: 30x	Sensor: 1/3″ CMOS Effective Pixels: 2.13 MP Resolution: 1920×1080 Focal length: 3.3–33 mm Optical Zoom: 10x Digital Zoom: 3x Max. Zoom: 30x
Thermal Camera	—	Focal length: 19 mm Resolution: 640×512 Digital Zoom: 2x / 4x / 8x Pixel Pitch: 12 μm Spectral Band: 8–14 μm
General	Dimensions: 110×110×180 mm Weight: 0.8 kg Voltage: 12 V Operating Temperature: -20~60 ℃	Dimensions: 80×80×110 mm Weight: 0.6 kg Voltage: 12 V Operating Temperature: -20~60 ℃
