Description

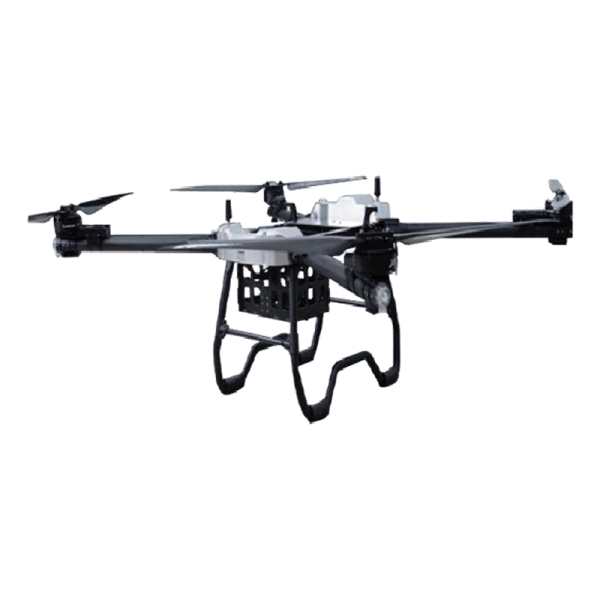

- 30 kg Payload Agriculture Drone
Aircraft Parameters
| Dimension | |
|---|---|
| Size (L×W×H, propeller included) |
Unfolded: 1830 × 1480 × 850 mm Folded: 900 × 780 × 850 mm |
| Wheelbase | 2200 mm |
| Weight | |
| Aircraft Weight | 38.5 kg |
| Max. Payload | 30 kg |
| Max. Takeoff Weight | 68.5 kg |
| Performance | |
| Max. Flight Time | 40 min |
| Cruising Speed | 12 m/s |
| Max. Horizontal Speed | 20 m/s |
| Max. Ascent Speed | 5 m/s |
| Max. Descent Speed | 4 m/s |
| Max. Flight Altitude | 5000 m |
| Comm. & Nav | |
| Transmission Range | 20 km / 30 km |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Environment | |
| Max. Wind Resistance | Level 6 |
| IP Protection Rating | IP54 |
| Operating Temperature | -20 ~ 60°C |
| Packaging | |
| Package Dimensions | 1300 × 1300 × 900 mm |
| Package Weight | 75 kg |
