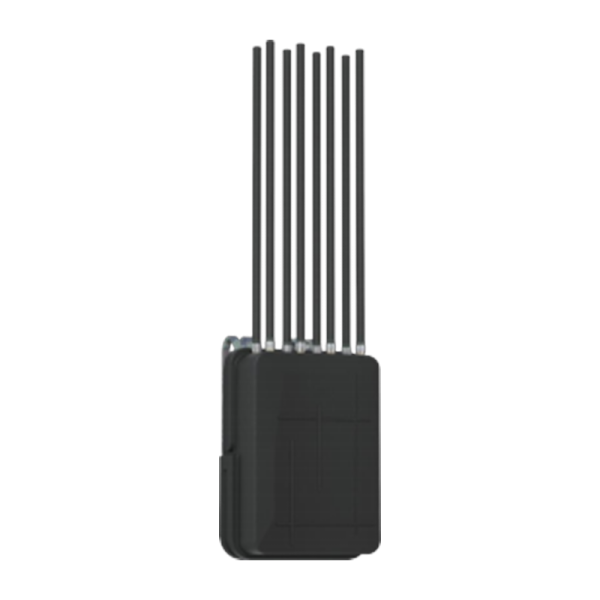

Smaug J7-5000

Overview	Function	Range	Power
A backpack-type signal system designed for UAV interference and control disruption, enabling effective airspace denial and operational response.	Signal interference & control disruption	Up to 2 km	Up to 400 W total output

Overview

Function

Range

Power

A backpack-type signal system designed for UAV interference and control disruption, enabling effective airspace denial and operational response.

Signal interference & control disruption

Up to 2 km

Up to 400 W total output

Description

Parameters

Operation
Type	Backpack Signal Device
Function	Signal interference & UAV control disruption
Coverage	360°
Simulated Distance	≥ 2 km
Frequency
Frequency Bands	400 / 433 / 860–930 / 1380–1450 / 1555–1620 / 2400–2500 / 5100–5350 / 5725–5995 MHz
Power
Transmit Power	Up to 50W per channel
Total Output Power	Up to 400W
Antenna Gain	≥ 10 dBi
General
Battery Capacity	~10,000 mAh (low-temperature resistant)
Endurance Time	30 – 45 min
Charging Mode	AC 220V
Dimensions	40 × 28 × 12.5 cm
Weight	11.5 kg
