Description

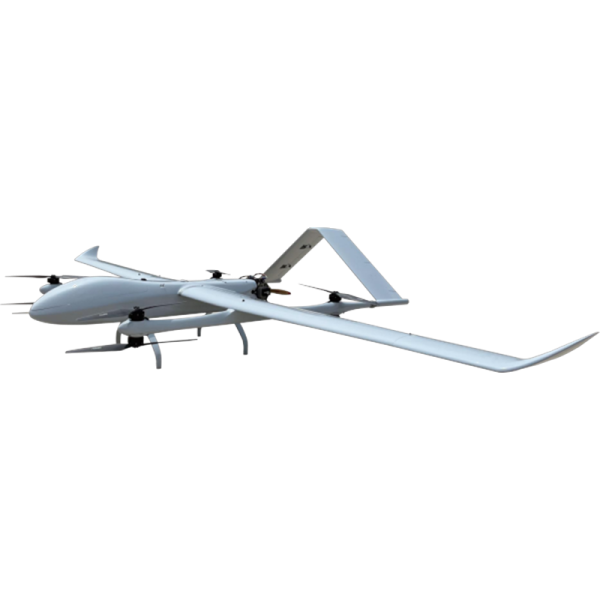

- VTOL Fixed-Wing Heavy UAV Platform
Parameters
| Dimensions | |
|---|---|
| Body Length | 3004 mm |
| Body Height | 704 mm |
| Wingspan | 6970 mm |
| Weight | |
| Max Payload | 50 kg |
| Max Takeoff Weight | 150 kg |
| Performance | |
| Max Flight Time | 300 min |
| Fuel Tank Capacity | 45 L |
| Engine Displacement | 275 cc |
| Cruising Speed | 100 km/h |
| Max Horizontal Speed | 140 km/h |
| Max Ascent Speed | 4 m/s |
| Max Descent Speed | 2.5 m/s |
| Max Flight Altitude | 4500 m |
| Communication & Navigation | |
| Transmission Range | 80 km |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Environment | |
| Max Wind Resistance | Level 7 |
| IP Rating | IP54 |
| Operating Temperature | -20°C ~ 60°C |
| Packaging | |
| Fuselage Box | 2840 × 1250 × 880 mm |
