Description

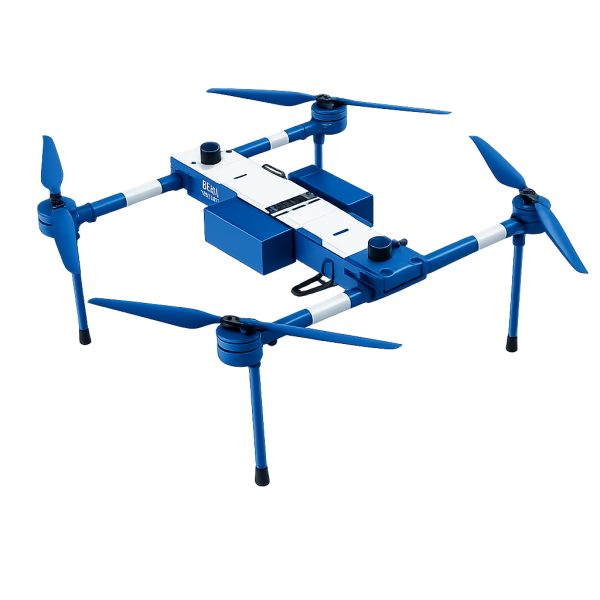

- HY-D06 Quadcopter UAV System
Parameters
| Dimensions | |
|---|---|
| Wheelbase | 940 mm (±10 mm) |
| Size (with propellers) | 1300 × 1150 × 400 mm (±10 mm) |
| Size (folded) | 800 × 680 × 400 mm (±10 mm) |
| Weight & Payload | |
| Takeoff Weight (with battery) | ≤ 9.2 kg |
| Max Payload | 6 kg |
| Max Takeoff Weight | ≤ 15.2 kg |
| Performance | |
| Endurance | 60 min (no load) / 40 min (3 kg load) / 24 min (6 kg load) |
| Flight Speed | 0 ~ 18 m/s |
| Control Range | ≤ 16 km |
| Operating Altitude | 0 ~ 5000 m |
| Max Flight Height | ~2000 m |
| Environment | |
| Operating Temperature | -20°C ~ +50°C |
| Wind Resistance | Level 6 |
| Capabilities | |
| Flight Mode | Automatic takeoff & landing |
| Structure | Lightweight modular airframe |
| Applications | Reconnaissance, delivery, command relay, lighting missions |
