Product Description

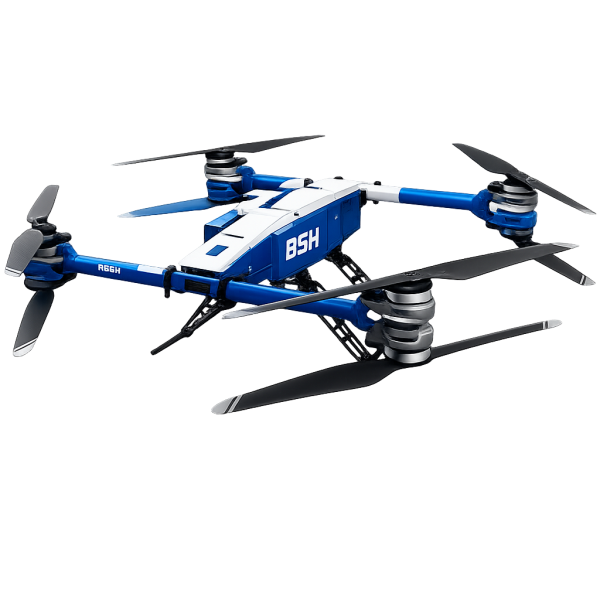

The D100 Multi-rotor UAV is a heavy-lift drone designed for high payload capacity and superior flight stability, making it suitable for a wide range of missions including surveillance, search and rescue, firefighting, and material delivery.
Built with a multi-axis stabilization system, it maintains reliable flight performance even under partial rotor failure, ensuring safety and operational continuity. This platform is ideal for complex operations across diverse and demanding environments.
Parameters
| Dimensions | |
|---|---|
| Wheelbase | 2416 mm |
| Unfolded Size | 3000 × 3000 × 685 mm |
| Folded Size | 2000 × 750 × 600 mm |
| Weight & Payload | |
| Empty Weight | 119 kg |
| Max Payload | 100 kg |
| Max Takeoff Weight | 212 kg |
| Performance | |
| Endurance | 50 min (50 kg payload) / 27 min (100 kg payload) |
| Flight Speed | 0 ~ 18 m/s |
| Control Range | 15 km (30 km optional) |
| Max Operating Altitude | 5500 m |
| Environment | |
| Wind Resistance | Level 6 (takeoff & landing) / Level 7 (cruising) |
| Deployment | |
| Unfold / Retract Time | ≤ 5 minutes (2 persons) |
