Description

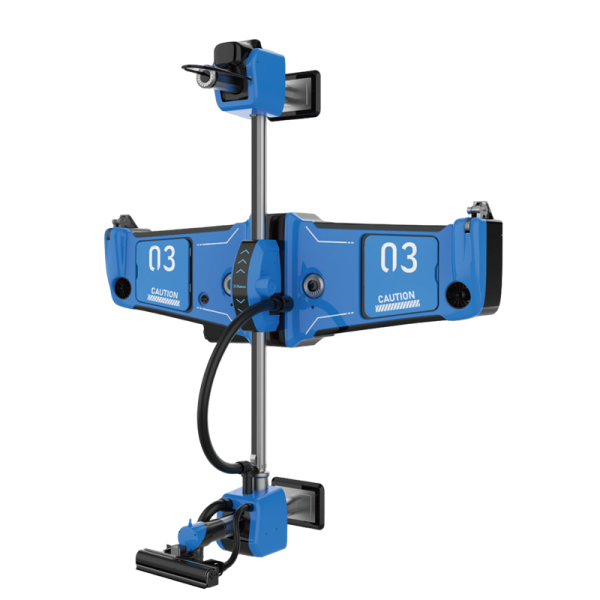

- Lingyun Y3 Glass Cleaning Robot
Parameters
| Dimension | |
|---|---|
| Size (Expanded) | 2050 × 2050 × 820 mm |
| Size (Folded) | 960 × 2050 × 820 mm |
| Weight | 90 kg (excluding batteries) |
| Performance | |
| Working Height | 600 m |
| Operating Slope | 0° ~ 90° |
| Obstacle Crossing | 20 cm |
| Travel Speed | 0.5 m/s |
| Cleaning Efficiency | 100 ~ 250 m²/h |
| Glass Requirements | |
| Minimum Glass Width | 80 cm |
| Minimum Glass Thickness | 5 mm |
| Cleaning Width | 400 mm |
| Power & System | |
| Power Supply | Built-in batteries (2 × 43.2V 60Ah) |
| Battery Endurance | ≥ 7 hours |
| Water System | Built-in recycling tank (19L) |
| Environment | |
| Operating Temperature | 0 ~ 55°C |
| IP Protection Rating | IP55 |
| Safety & Control | |
| Power Failure Protection | Self-locking device |
| Applicable Surface | Flat glass facades (non-curved) |
| Control Mode | Fully automatic / Manual |
