Description

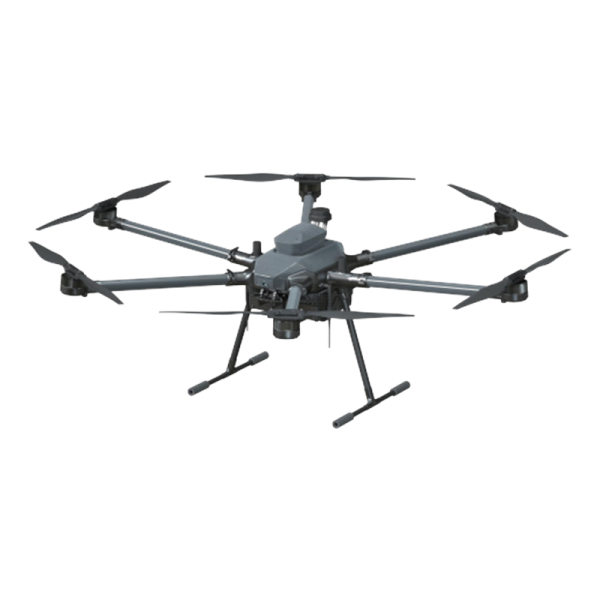

- 15 kg Payload Multi-Rotor UAV
Parameters
| Dimension | |
|---|---|
| Size (L×W×H, propeller included) | 1750 × 1750 × 660 mm |
| Wheelbase | 1750 mm |
| Weight | |
| Aircraft Weight | 13 kg |
| Max. Payload | 15 kg |
| Max. Takeoff Weight | 37.2 kg |
| Performance | |
| Max. Flight Time | 60 min / 25 min (Fully Loaded) |
| Cruising Speed | 12 m/s |
| Max. Horizontal Speed | 15 m/s |
| Max. Ascent Speed | 3 m/s |
| Max. Descent Speed | 2 m/s |
| Max. Flight Altitude | 5000 m |
| Comm. & Nav | |
| Transmission Range | 20 km / 30 km |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Environment | |
| Max. Wind Resistance | Level 6 |
| IP Protection Rating | IP54 |
| Operating Temperature | -20 ~ 60°C |
| Packaging | |
| Package Dimensions |
Fuselage Box: 830 × 750 × 600 mm Arm Box: 109 × 440 × 300 mm |
| Package Weight |
Fuselage Box: 26.5 kg Arm Box: 12.6 kg |
